Platinum F-100 SE v.3

COMING SOON

Raising the bar!

Platinum SE v.3 series - engineered to perfection, these state-of-the-art loudspeakers redefine the boundaries of sound quality, delivering an unparalleled auditory experience for discerning audiophiles and music enthusiasts alike.

We have once again raised the bar by incorporating significant constructional changes which affected the sound performance.
The Platinum SE v.3 series is the culmination of years of research and development, incorporating cutting-edge technology and meticulous craftsmanship.

Designed with the highest standards in mind, these loudspeakers offer a remarkable blend of precision, power, and elegance.

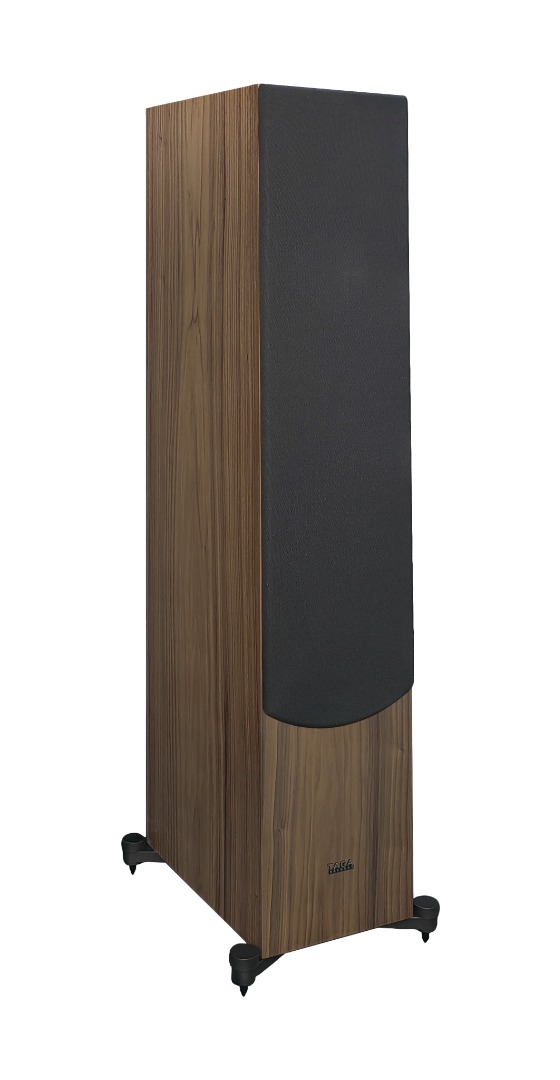

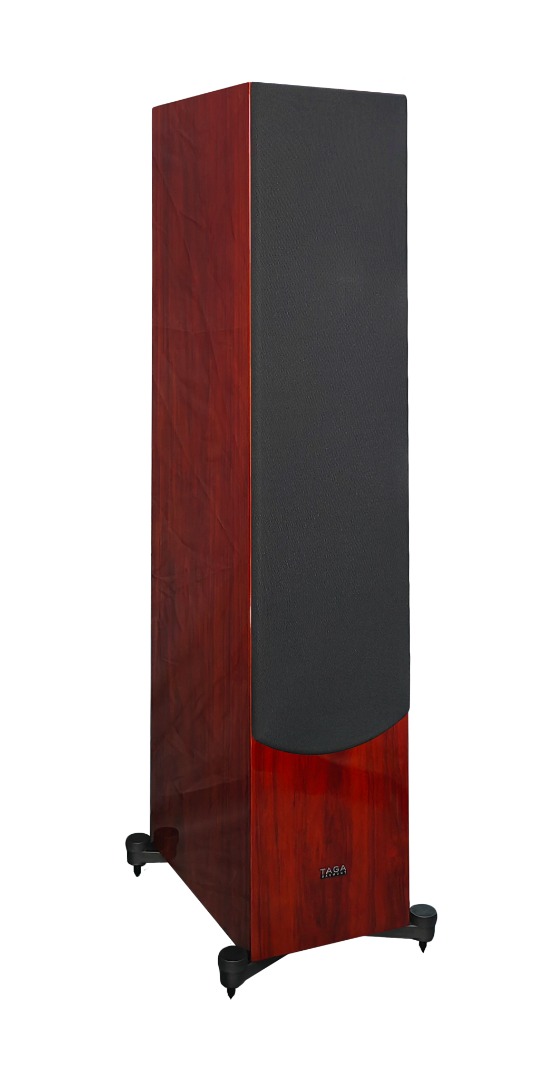

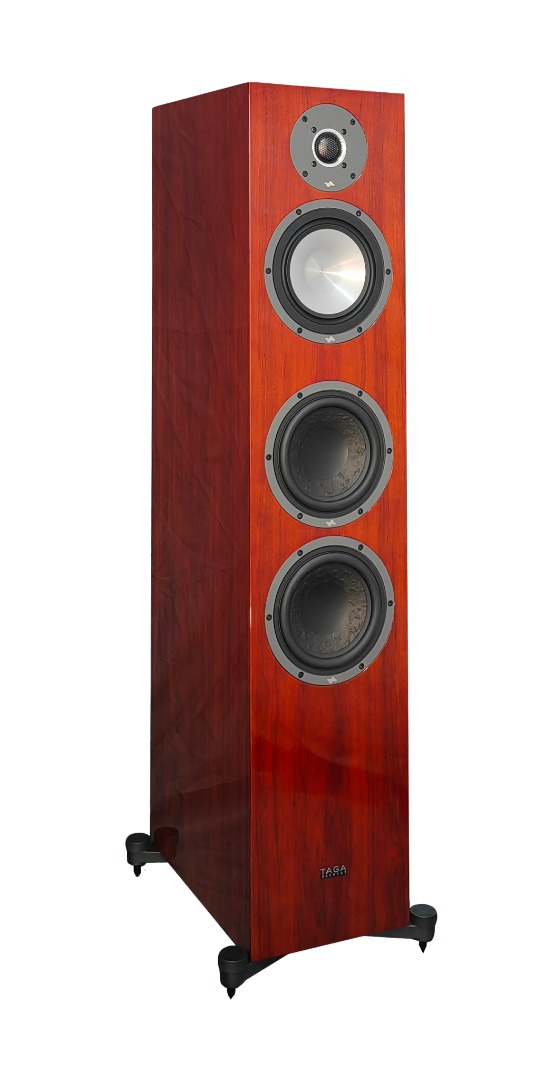

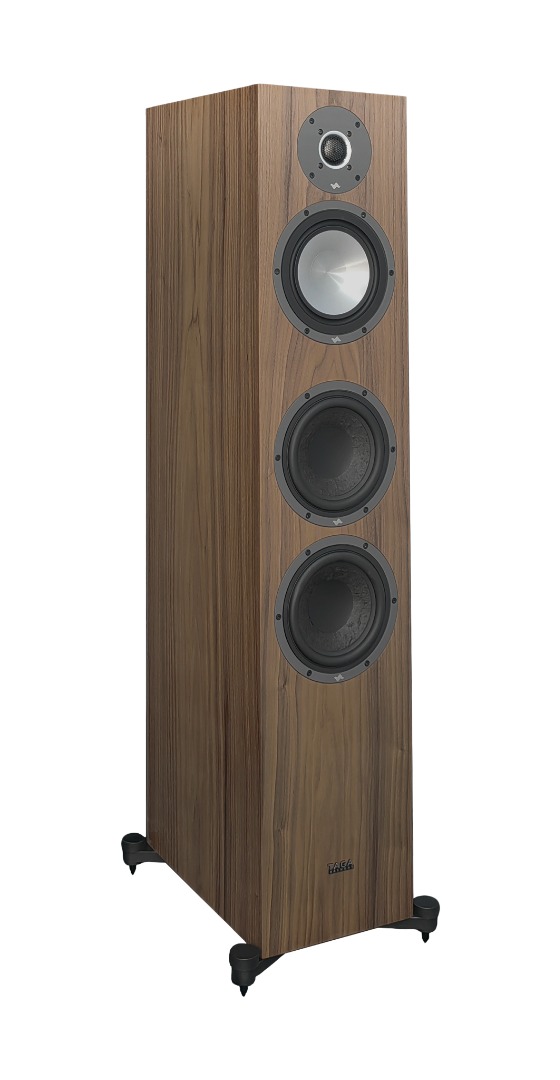

The Platinum F-100 SE v.3 is the flagship floorstanding speaker in the Platinum SE v.3 series, incorporating a 3-way design and a totally new shape of the enclosure.
TAGA Harmony has implemented upgrades in all crucial components, which are responsible for the sound resulting in the stunning sound performance far beyond the price range of the model.
The speaker's enclosure is expertly crafted with premium materials and finished with a luxurious veneer, adding a touch of sophistication to any listening space.

TAGA Harmony team has poured their passion and expertise into creating a speaker that not only meets but exceeds the expectations of audiophiles around the world.
The Platinum SE series is a testament to our commitment to innovation, quality, and the pursuit of perfect sound.

KEY FEATURES

The 3nd generation TLIE-II enclosure (Taga Low Interference Enclosures) which uses more rigid structure and thicker front MDF baffle walls to limit unwanted resonances and increased internal volumes. The enclosure is strengthened by thicker internal bracing and additional two transverse strengthening MDF bars to further reduce vibrations.
Enclosure walls thickness: front baffle: 25 mm , walls: 21 mm.
The enclosure is tilted backwards to time-align all the drivers and to further limit unwanted resonances and turbulences.

TAGA Harmony logo badge placed on cabinet front panel - shows our strive and passion for the perfect harmony of the sound performance.

Magnetically mountable grill - helps to keep more sleek appearance of the speaker as well as lower distortions when the grill is taken off.

High-end enclosure damping material to better break up the standing waves, lower resonances and limit distortions what improves the smoothness and characteristics of sound in all ranges.

Elegant feet and spikes - the feet are exceptionally rigid and thick to provide almost perfect isolation of the speaker from the floor and  increasing the transparency of sound and to produce better definition and control for the bass. They adds extra chic to the loudspeakers and their modern but yet timeless looks.

High quality veneers - very durable, elegant, wood veneer finishes are coat-painted in clear gloss or matt.

Bassreflex -low-turbulence and high-velocity port for increased dispersion of low frequencies.

The 2^nd generation 36 mm (1.42”) O-TPTTD-I (Oversized Taga Pure Titanium Tweeter Dome) from the flagship Diamond series utilizes a light titanium dome and provides high power handling and very accurate, clear, smooth and detailed performance. Ferrofluid cooled and heavy duty 28mm CCAW and silver wiring voice coil as well as 2 magnets (Φ80 & Φ70) help the tweeter to bear high power.
The tweeter has exceptional precision and works with ultra-extended high-frequency response up to 33 kHz (+/- 3dB).
The E-TPAF (Enlarged Taga Pure Aluminum Faceplate) and metal mesh assists with equal and flat dispersion of sound in and off the axis of the driver.
Minimizing the number of components means better structural rigidity, lower distortions and resonances.

The 3^rd generation 165 mm (6.5”) TPACD-II (Taga Pure Aluminum Cone Driver) midrange driver with TRS - utilizes rigid and ultra-light aluminum cone, aluminum chassis and oversized 2-magnet structure Φ90/Φ80. It can move very fast and frequently allowing mid-range frequencies to be very rich, spacious and sweet.
TRCS - Taga Reversed Cone Surround provides more stable, faster and greater range of cone movement reflecting in higher dynamics and more precise and neutral sound.


The 2^nd generation 165 mm (6.5”) TNPPCD-I (Taga  Non-pressed Paper Cone Driver) bass driver – is equipped with two oversized magnets and  aluminum chassis. It is extremely rigid and utilizes vibration-free solutions. The heavy duty 2-layer copper clad aluminum (CCA) voice coil allows high power handling. It offers deep, precise and detailed performance. Thanks to a larger surface area to push air – the sound can be played at much higher levels.

Precise crossover – The crossover sections use minimal number of high quality and carefully selected components in the high-pass and low-pass crossover sections to ensure the best neutrality, to handle massive amounts of power and to provide the greatest precision.

Internal wiring – 14AWG, made of multi-stranded Oxygen Free Copper for connecting all drivers with crossovers and to ensure that the incoming signal will not lose the most important details on the path from the amplifier to the drivers.

Binding posts - high quality posts accept raw speaker cables up to 10AWG and most popular types of connectors. Bi-Wire and Bi-Amp Capability: offering flexibility in system configuration, the Platinum F-100 SE v.3 supports both bi-wire and bi-amp connections for audiophiles seeking to fine-tune their setup.

Real wood veneer colours

African Walnut - Gloss

Ebony - Gloss

Natural Walnut - Matt

Rosewood - Gloss

HIGH-FREQUENCY DRIVER

1. E-TPAF - Enlarged Taga Pure Aluminum Faceplate
2. EVA fabric pad
3. 36 mm (1.42”) O-TPTTD-I Oversized Taga Pure Titanium Tweeter Dome
4. Oversized Φ80 mm ferrite magnet #1
5. Oversized Φ70 mm ferrite magnet #2
6. 28 mm CCAW and silver wiring voice coil
7. Damping sponge
8. Metal mesh
9. Washer
10. T-YOKE


MIDRANGE DRIVER

1.    165 mm (6.5”) TPACD-II -Taga Pure Aluminum Cone with TRCS - Taga Reversed Cone Surround
2.    Taga inverted dust cap
3.    Gold-plated terminal
4.    2-layer copper clad aluminum (CCA) voice coil
5.    T-YOKE
6.    Aluminum injection-molded chassis with anti-oxidation surface process
7.    Spider
8.    Washer
9.    Oversized Φ90 mm ferrite magnet
10.  Backing magnet


BASS DRIVER

1. 165 mm (6.5”) TNPPCD-I - Taga  Non-pressed Paper Cone
2. Paper dust cap
3. Spider
4. 2-layer copper clad aluminum (CCA) voice coil
5. Copper sleeve
6. Aluminum injection-molded chassis with anti-oxidation surface process
7. Gold-plated terminal
8. Washer
9. Oversized Φ120 mm ferrite magnet
10. T-YOKE
