YOUR MUSICAL AND MOVIE JOURNEY!
New Generation Audio-Video series
The new generation Audio-Video series is not an evolution of its predecessors - it is a completely new approach to the design and sound of this line. Audio-Video has been a leader in its price group for years, in terms of fine design and sound offered in affordable prices. The style, materials and sound quality of the next Audio-Video generation further strengthen its position as a leader in this segment and far beyond.

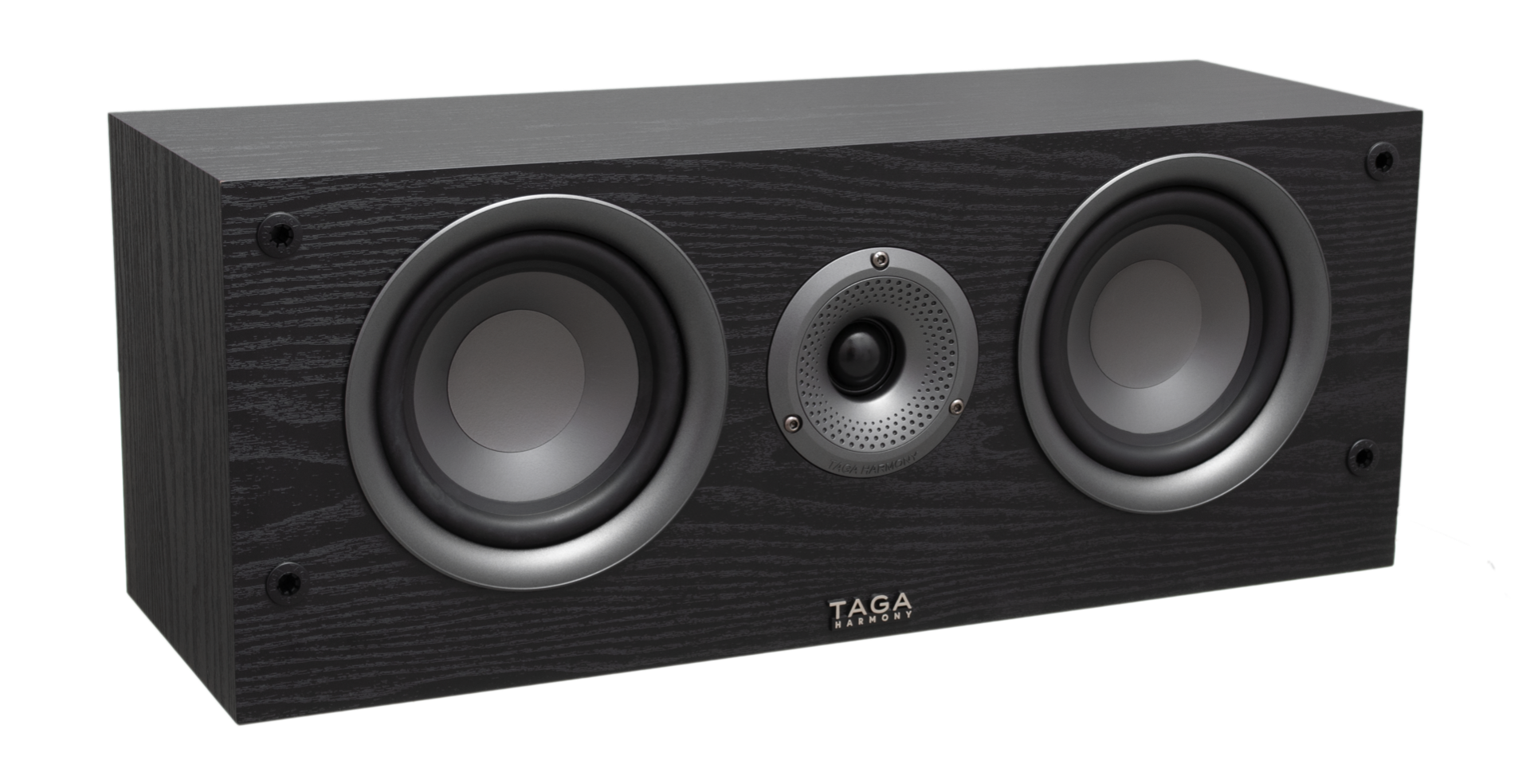

When designing the TAV-807C our objective was to create an eye-catching center speaker with a great sound, which would be offered in a budget price which is a hallmark of the Audio-Video series.
As always we mostly focused on intensive listening tests and sound adjustments rather than on creating perfect specifications on paper because music and generally sound is about emotions, feelings and passion.
The final outcome resulted in a center speaker which offers smooth and rich midrange and appealing, detailed and crystal clear highs as well as a very open and airy soundstage, which is so important in multichannel music and movies.
TAV-807C with its detailed and rich high frequencies coupled with open and natural midrange is ideal for performing movie soundtracks and multichannel music with lifelike dynamics and clarity.
TAV-807C proudly continues the heritage of its predecessors and proves that our Audio-Video series is one of the best bargains in speakers ever!
KEY FEATURES and changes compared to the previous generation
2nd generation TLIE-I enclosure (Taga Low Interference Enclosures) –more rigid structure to limit unwanted resonances: thicker 18 mm MDF front baffle.
New high-quality enclosure damping material to better break up the standing waves, lower resonances and limit distortions what improves the smoothness and characteristics of sound in all ranges.
TAGA Harmony new logo badge placed on the cabinet front panel, which is elegant and shows our strive and passion for perfect harmony of sound performance.
Upgraded 1” (25 mm) silk dome high-frequency driver with oversized Φ70 magnet, ferrofluid cooling and heavy duty copper voice coil can handle high power and its performance is very accurate, clear, smooth, detailed and airy sound.
2nd generation TWG-I tweeter faceplate (Taga WaveGuide) - specialized horn-like design of the tweeter's faceplate utilizing concave diffusers assists with equal and flat dispersion of sound in and off the axis of the driver. In the newest edition the shape and depth have been redesigned to allow better flow of sound stream and even wider dispersion which helps to build a more three-dimensional and natural soundstage. Minimizing the number of components means better structural rigidity, lower distortions and resonances.
Upgraded 5.25” (133 mm) bass-midrange driver – ultra-light polypropylene cone with elastic rubber suspension provide fast movement and smooth, rich and very natural midrange frequency response. Heavy duty voice coil and Φ70 magnet can stand high temperatures and power inputs. The flat dust cap supports air flow and smoothens the frequency response.
Wall mounts – factory wall mounts offer ability for easy and fast installation on walls or other structures.
| Design |
Center, 2-way, 3 drivers TLIE-I enclosure Crossover points: 4.5kHz |
| Power handling |
20 - 120W (recommended amplifier power) 90W RMS |
| Frequency response | 53Hz - 25kHz |
| Bassreflex | Rear double |
| Impedance | 6ohm |
| Sensitivity | 88dB |
| High-frequency driver | 25 mm (1”), TWG-I |
| Bass-Midrange driver | 2 x 133 mm (5.25") |
| Features / accessories | Wall mounts |
| Dimensions (H x W x D) | 19.5 x 50 x 17 cm |
| Weight | 4.7 kg / pc. |
Vinyl colours
Black
Modern wenge
Oak
Walnut
White
TAV-807C and TAV-807S
CABINETS
TLIE-I – The 2nd generation of Taga Low Interference Enclosures is made of high-quality, high-density MDF boards (18 mm for the front baffle and 9 mm for other walls) to increase stiffness and limit any unwanted resonances.
The shapes are perfectly crafted not only to look wonderful and modern but mainly to lower any unwanted vibrations, diffractions or turbulences, which can affect the sound performance.
High-end enclosure damping material is used to better break up the standing waves, lower resonances and limit distortions what improves the smoothness and characteristics of sound in all ranges.
Wall mounts – factory wall mounts offer ability for easy and fast installation on walls or other structures.
Carefully selected high quality vinyl finishes are very durable, elegant, imitate natural wood texture and are very pleasant in touch. The vinyl finishes are neatly applied to cabinets using precise machinery to provide the best looks.
HIGH-FREQUENCY DRIVER
1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
4. Sound-absorbing cotton
5. Copper voice coil
6. Black silk dome
7. TWG-I Front faceplate (2 pieces)
Upgraded 1” (25 mm) silk dome high-frequency driver with oversized Φ70 magnet, ferrofluid cooling and heavy duty copper voice coil can handle high power and its performance is very accurate, clear, smooth, detailed and airy sound.
2nd generation TWG-I tweeter faceplate (Taga WaveGuide) - specialized horn-like design of the tweeter's faceplate utilizing concave diffusers assists with equal and flat dispersion of sound in and off the axis of the driver.
In the newest edition the shape and depth have been redesigned to allow better flow of sound stream and even wider dispersion which helps to build a more three-dimensional and natural soundstage. Minimizing the number of components means better structural rigidity, lower distortions and resonances.
BASS-MIDRANGE DRIVER
1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
4. Terminal
5. Ferrum injection-molded chassis with anti-oxidation surface process
6. Spider
7. Copper voice coil
8. Polypropylene cone and rubber surround
9. Polypropylene flat dust cap
Ultra-light polypropylene cone with elastic rubber suspension, oversized Φ70 magnet structure, heavy duty voice coil and coil former copped with more rigid driver chassis are built to withstand higher power handling and longer operation time without increasing driver temperature and in result to generate smooth, rich and very natural midrange frequency response and deep, musical and precise bass.
The flat dust cap supports air flow and smoothens the frequency response.
BASSREFLEX
BOM Bassreflex Omnidirectional Module - low-turbulence and high-velocity ports utilizing concave diffusers for increased dispersion of low frequencies.
CROSSOVERS
High quality, close-tolerance and precisely selected crossover components and internal wires for absolute sound neutrality, high long-term power and reliability.
INTERNAL WIRING
TAGA Harmony utilizes high quality internal wiring connecting crossovers with drivers assuring that incoming audio signals from receiver or amplifier will not lose any important details on the paths to drivers.
BINDING POSTS
High quality, gold-platted banana binding posts accepting raw speaker cables up to 10AWG and most popular types of connectors.
